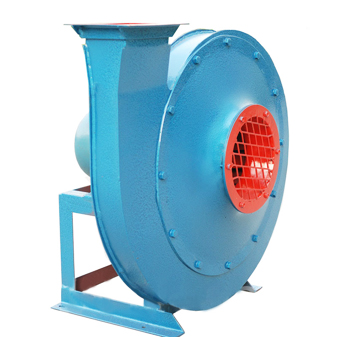

| 9-19 and 9-26 centrifugal fans |
|
|
| |
| They are generally used for high pressure forced ventilation of forges, and in the glass, electroplating, ceramics, battery and radio industries, and to convey materials in the grain, feed and mineral powder processing industries. They are also applied to carton machinery equipment and toughened glass equipment as assistance. The media to be delivered shall be air and other gas that are incapable of spontaneous combustion and noncorrosive and will do no harm to human body. There shall not be stickums in the gas. The operating temperature shall not exceed 80℃ in general at the time of ventilation. The content of dust and hard particles shall not be more than 150mg/m3. |
| |
| 9-19 centrifugal fans |
| |
|
No.
|
Rotation Speed(r/min)
|
Power(Kw)
|
Volume Flow(m3/h)
|
Total Pressure(Pa)
|
|
3.5A
|
2800
|
1.5
|
552-847
|
2745-2744
|
|
4A
|
2800
|
2.2
|
824-1264
|
3584-3597
|
|
2900
|
3
|
1410-1704
|
3507-3253
|
|
4.5A
|
2900
|
4
|
1174-2062
|
4603-4447
|
|
|
5.5
|
2281-2504
|
4297-4112
|
|
5A
|
2900
|
7.5
|
1610-2844
|
5697-5517
|
|
2930
|
11
|
3166-3488
|
5323-5080
|
|
5.6A
|
2930
|
11
|
2622-3619
|
7182-7109
|
|
|
18.5
|
3996-4901
|
6954-6400
|
|
6.3A
|
2930
|
18.5
|
3220-5153
|
9149-9055
|
|
2950
|
30
|
5690-697
|
8857-8148
|
|
7.1D
|
2950
|
37
|
4610-7376
|
11717-11596
|
|
2970
|
55
|
8144-9988
|
11340-10426
|
|
8D
|
2970
|
75
|
6594-11649
|
15034-14546
|
|
2980
|
110
|
12968-14287
|
14021-13362
|
|
1450
|
7.5
|
3297-4616
|
3620-3647
|
|
|
15
|
5275-7144
|
3584-3231
|
|
9D
|
1450
|
15
|
4695-7511
|
4597-4551
|
|
|
22
|
8294-10171
|
4453-4101
|
|
10D
|
1470
|
30
|
6440-12450
|
5840-5495
|
|
1480
|
37
|
13952-15455
|
5244-4958
|
|
11.2D
|
1480
|
45
|
9047-15380
|
7364-7236
|
|
|
75
|
17491-21713
|
6927-6246
|
|
970
|
15
|
5990-11580
|
3182-2996
|
|
|
22
|
12978-14375
|
2860-2705
|
|
12.5D
|
1480
|
75
|
12577-18447
|
9229-9310
|
|
|
110
|
21381-30186
|
9068-7822
|
|
14D
|
1490
|
220
|
30040-42409
|
11464-9878
|
|
990
|
75
|
19888-28078
|
4917-4249
|
|
16D
|
1490
|
400
|
57150-63305
|
13808-13035
|
|
990
|
110
|
29687-41912
|
6456-5575
|
|
17D
|
1490
|
500
|
61200-75900
|
16356-14715
|
|
990
|
160
|
40500-50300
|
7169-6450
|
|
18D
|
1490
|
630
|
72600-90100
|
18336-16497
|
|
990
|
200
|
48100-59700
|
8037-7231
|
|
| |
| 9-26 centrifugal fans |
| |
|
No.
|
Rotation peed(r/min)
|
Power(Kw)
|
Volume Flow(m3/h)
|
Total Pressure(Pa)
|
|
3.5A
|
2900
|
3
|
1473-2154
|
2950-2608
|
|
4A
|
2900
|
5.5
|
2198-3215
|
3852-3407
|
|
7.5
|
3000-5000
|
2835-1060
|
|
4.5A
|
2900
|
7.5
|
3130-3685
|
4910-4776
|
|
2930
|
11
|
3963-4792
|
4661-4256
|
|
5A
|
2930
|
15
|
4293-6349
|
6035-5381
|
|
18.5
|
6762
|
5180
|
|
5.6A
|
2930
|
22
|
6032-7185
|
7610-7400
|
|
2950
|
30
|
7766-9500
|
7218-6527
|
|
6.3A
|
2970
|
45
|
8588-11883
|
9698-8915
|
|
55
|
12699-13525
|
8636-8310
|
|
7.1D
|
2970
|
75
|
12292-14643
|
12427-12078
|
|
2980
|
110
|
15826-19360
|
11776-10635
|
|
8D
|
2980
|
132
|
17584-20947
|
15955-15504
|
|
200
|
22640-27696
|
15112-13634
|
|
1470
|
30
|
13001-13848
|
3421-3294
|
|
1450
|
18.5
|
8792-12166
|
3834-3529
|
|
9D
|
1480
|
45
|
16118-19717
|
4620-4181
|
|
1470
|
30
|
12518-14913
|
4869-4736
|
|
10D
|
1480
|
75
|
23612-30052
|
5761-5065
|
|
55
|
17172-21465
|
6143-5920
|
|
11.2D
|
1490
|
132
|
39205-42221
|
6691-6382
|
|
1480
|
110
|
24126-36189
|
7747-7009
|
|
980
|
37
|
23959-27953
|
3031-2763
|
|
30
|
15973-21963
|
3346-3140
|
|
12.5D
|
1490
|
250
|
46117-58695
|
9103-7993
|
|
160
|
33540-41925
|
9713-9356
|
|
990
|
75
|
33309-38860
|
3785-3450
|
|
980
|
45
|
22206-30533
|
4179-3921
|
|
14D
|
990
|
75
|
31197-35097
|
5262-5188
|
|
1490
|
250
|
47121-53011
|
12285-12109
|
|
16D
|
1490
|
500
|
70339-79131
|
16250-16014
|
|
990
|
220
|
75675-81496
|
5971-5696
|
|
