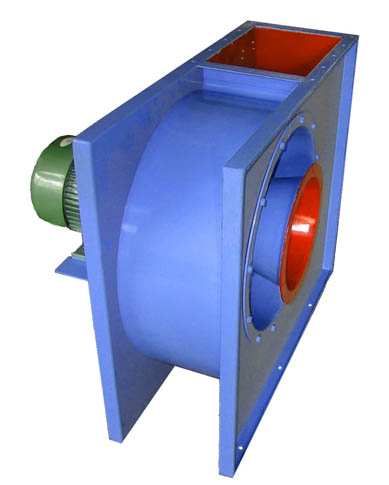

Fans of the series with a fan for press for the drying system and the requirements of environmental noise, blade profile, the installation size and angle adjustment, so that the fan internal air condition greatly improved. Uniform airflow distribution and printing system with the process, to make the ink drying speed, low noise operation. Blades welded to ensure good strength and life. Fan pleasing in appearance, easy installation, stable operation and good mechanical and electrical accessory products.
| Model(No.) |
Power
(Kw) |
Rotation Speed
(r/min) |
Volume Flow
(m3/h) |
Total Pressure
(Pa) |
| 2.2 |
1.5-2.2 |
2900 |
365-2879 |
1210-1503 |
| 0.75-1.1 |
2300 |
289-2283
|
761-945 |
| 2.5 |
0.75 |
1450 |
268-2113 |
391-486 |
| 1.1 |
1700 |
314-2477 |
537-668 |
| 2.2 |
2300 |
426-3352 |
987-1228 |
| 2.2-4 |
2900 |
537-4226 |
1569-1952 |
| 2.8 |
0.75-1.1 |
1450 |
377-2969 |
490-609 |
| 1.1-1.5 |
1700 |
442-3481 |
674-837 |
| 2.2-4 |
2300 |
598-4709 |
1240-1543 |
| 5.5-7.5 |
2900 |
754-5938 |
1971-2453 |
| 3.2 |
0.55-0.75 |
960 |
373-2934 |
280-349 |
| 1.1-2.2 |
1450 |
563-4431 |
641-796 |
| 1.5-3 |
1700 |
661-5196 |
878-1094 |
| 3-7.5 |
2300 |
893-7028 |
1613-2003 |
| 5.5-15 |
2900 |
1125-8863 |
2580-3212 |
| 3.6 |
1.1-1.5 |
960 |
530-4177 |
355-441 |
| 1.5-3 |
1450 |
801-6310 |
811-1009 |
| 3-5.5 |
1700 |
939-7398 |
1115-1387 |
| 7.5-11 |
2300 |
1271-10009 |
2013-2507 |
| 15-18.5 |
2900 |
1602-12620 |
3200-3986 |
| 4 |
1.1-1.5 |
960 |
728-5730 |
439-545 |
| 2.2-5.5 |
1450 |
1099-8655 |
1002-1246 |
| 4-11 |
1700 |
1288-10147 |
1377-1713 |
| 7.5-22 |
2300 |
2314-13729 |
2490-3096 |
| 22-37 |
2900 |
2918-17310 |
3958-4922 |
| 4.5 |
2.2-3 |
960 |
1036-8159 |
555-690 |
| 5.5-11 |
1450 |
1565-12324 |
1270-1579 |
| 7.5-15 |
1700 |
1835-14449 |
1746-2170 |
| 11-37 |
2300 |
2482-19548 |
3155-3923 |
| 37-55 |
2900 |
3130-24648 |
5016-6237 |
| 5 |
1.1-2.2 |
720 |
1066-8394 |
385-479 |
| 3-5.5 |
960 |
1421-11192 |
686-852 |
| 7.5-15 |
1450 |
2147-16905 |
1569-1952 |
| 6 |
3-5.5 |
720 |
1842-14505 |
555-690 |
| 7.5-11 |
960 |
2456-19340 |
989-1229 |
| 22-37 |
1450 |
3709-29211 |
2265-2819 |
| 7.1 |
4-11 |
720 |
3050-24022 |
777-965 |
| 18.5-30 |
960 |
4067-32030 |
1381-1716 |
| 8 |
11-22 |
720 |
4366-34382 |
989-1229 |
|
